Empire 90cm Cooker Hood (Bordeaux Red)

• Traditional style, large chimney cooker hood
• Stunning Bordeaux Red matt enamel finish
• Richly polished brass handle and trim
• Air extractor mode; for external fume extraction
• Odour absorber mode; for internal filtering
• Powerful Extraction - Up tp 910 m³/h
• 2x Strong LED lamps
• 3-speed control (low, medium, high)

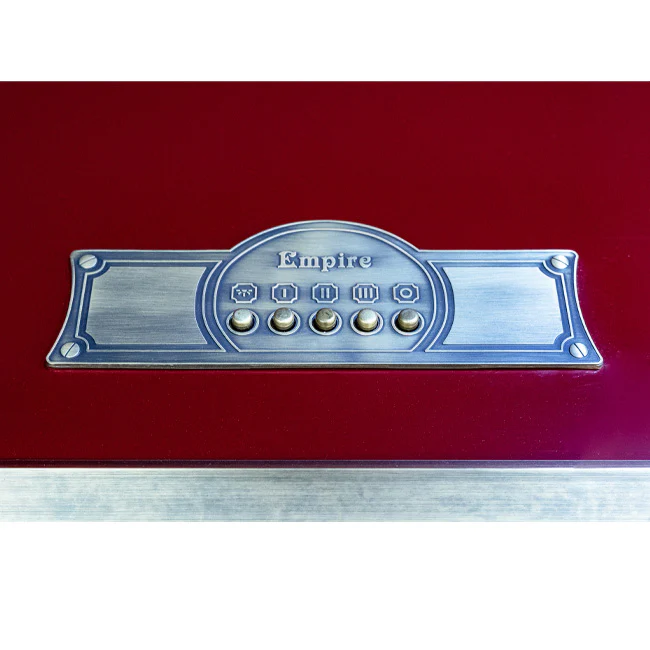

• Simple 5-button control panel
• Dimensions (cm): Hx 86.5, Wx 90, Dx 48

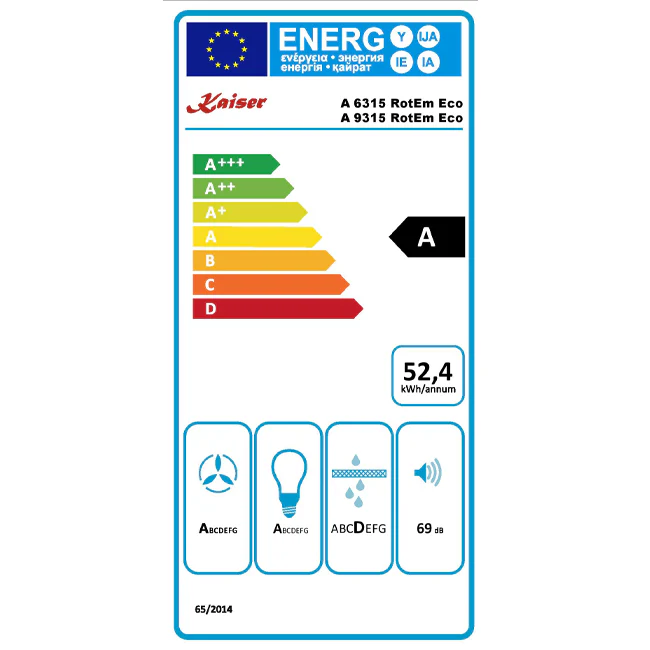

• Energy Efficiency Class A

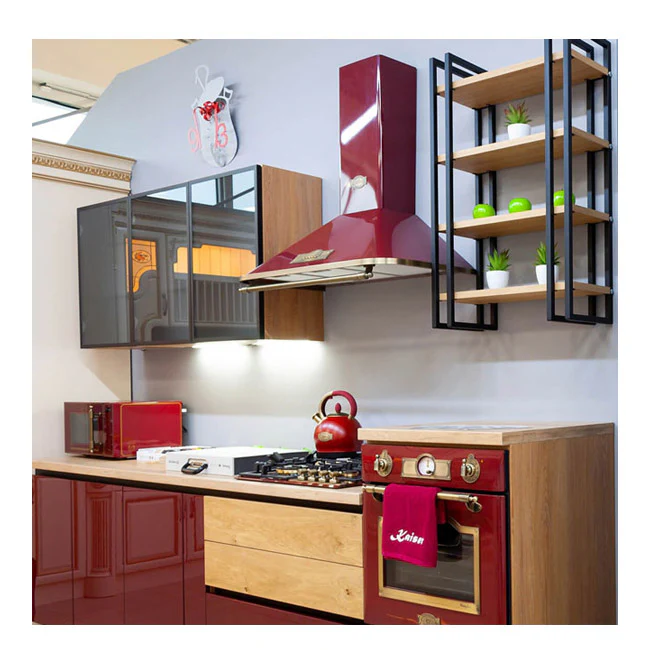

The Empire A 9315 RotEm Eco is a 90cm width, stunningly beautiful, Bordeaux red colour variation of our popular wall-mounted cooker hood. The large 90cm width makes this the perfect choice for placement above your range cooker, or large family cooktop.

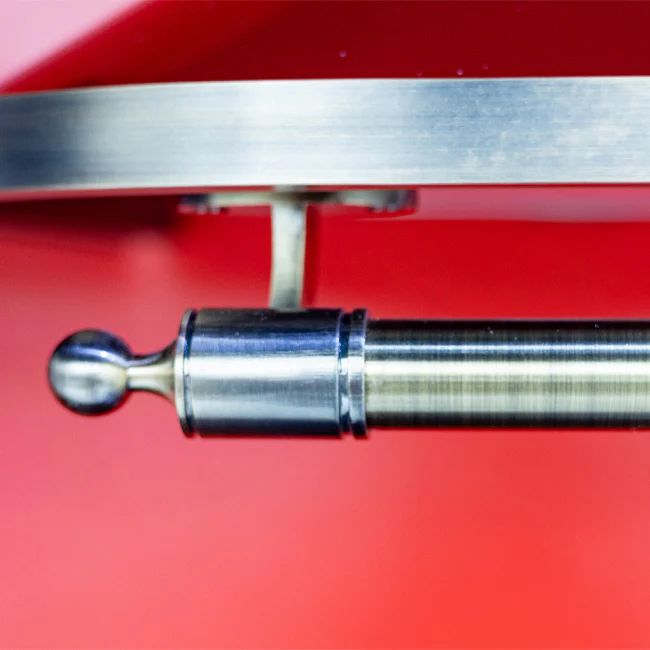

This hood has a glossy Bordeaux red finish, with metallic & bronze detailing. It's these details that make you fall in love with this product. With the striking Kaiser brand plate on the chimney, the easy-to-use 5-button control panel, and our favourite feature - the handle. This handle is perfect for quickly hooking a utensil, oven mitts, or even a towel as you're busy cooking in your kitchen.

As with all Kaiser cooker hoods, there's a choice of two operating modes to suit your kitchen layout & installation. Either use the recommended air extractor mode, for maximum performance capability. Or set up in odour absorber mode (also known as recirculation mode), if your kitchen does not allow for external extraction.

This cooker hood has a standard 3-speed control - low, medium and high. And, has 2x LED lamps to sufficiently light your cooktop.

Full Description

Exhaust air extractor mode

The metal grease filter purifies cooking vapours and smells by absorbing the fatty constituents and other tiny particles in the kitchen fumes. The air exhaust pipes can be either connected to the exhaust air conduction or directed to the outside.

Odour absorber mode

It is not always possible to connect the fume extractor hood to the ventilation system. In this case, the extractor hoods by Kaiser can operate as a filtering system. The metal grease filter absorbs the fatty constituents and other tiny particles from the cooking vapours first, then the odorous substances and micro particles are directed through the activated charcoal filter. The cooking vapours and fumes return, purified, into the kitchen.

Aluminium corrugated pipe

Used in exhaust mode; a 150mm diameter aluminium pipe which is easy to use and to assemble. This pipe can be bent as needed and stretched along the required length. As a lightweight product this does not require additional fixing to secure. There is also an included adaptor to connect pipes with a 120mm conduit.

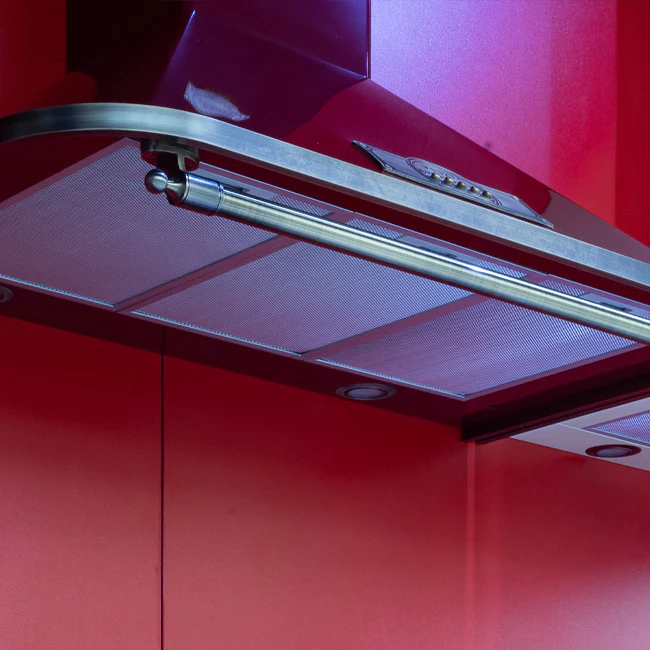

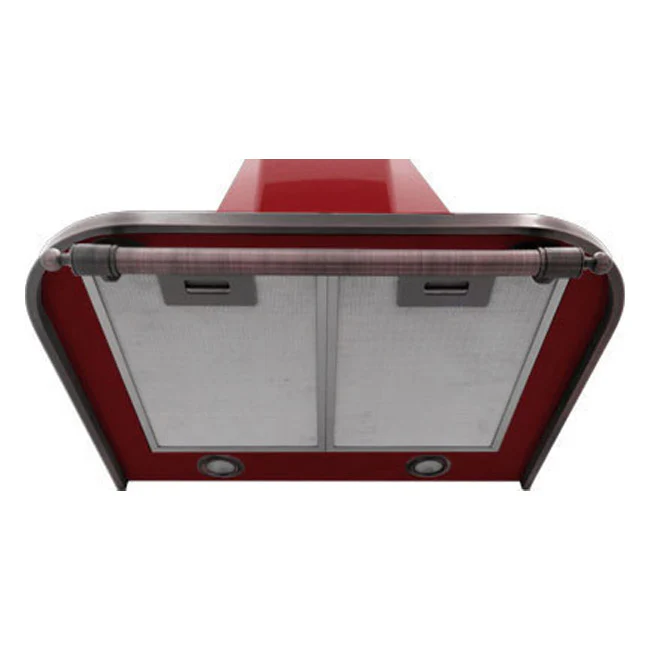

Metal grease filter

This long-life filter is made of stainless materials (stainless steel and aluminium). Grease filters should be cleaned every two months during normal operation of the hood in a dishwasher or manually, using mild detergent or liquid soap.

Charcoal filter

Our charcoal filters use chemically treated activated carbon, and have a high absorption capacity. The filer is capable of retaining particles of contaminating substances, the weight of which exceeds five times its own weight. The carbon filter removes various smells, smoke and steam impurities during cooking. The charcoal filters installed in our cooker hoods are for odour absorption/recirculation mode.

Specification



Finishing:	Red finish with metal elements Bronze handle
Plug Type	Type C (Hardwire Recommended)
Telescopic duct (cm):	60–100
Operating modes:	Air extractor mode odour absorber mode
Fan switch stages:	3
Grease filter material:	metal
Activated charcoal filter:	2
Max. fan power (m³/h) Exhaust air operation Recirculating air operation	910 / 820
Noise level (dbA) Exhaust air operation Recirculating air operation	51 / 69
Number of lamps / power (W):	2 × 1
Light type:	LED
Total connected load (W)	224
Nominal voltage (V):	220–240
Frequency (Hz):	50

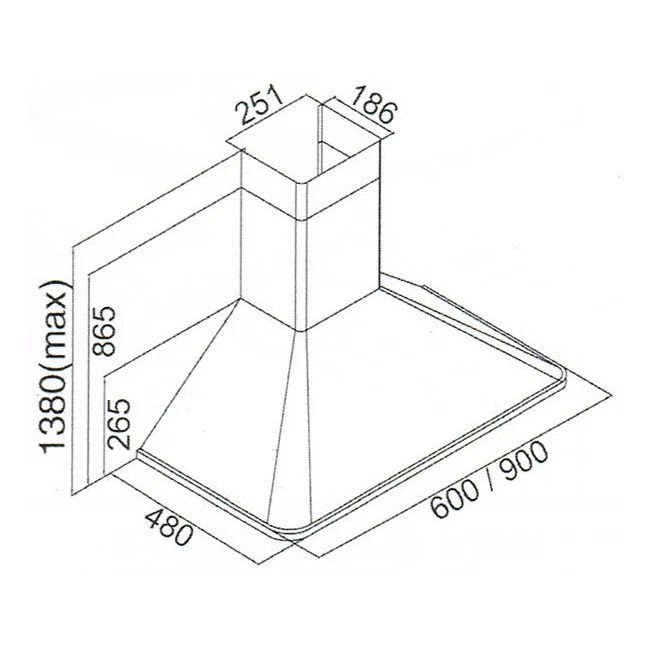

Product dimensions (H x W x D, cm):	86.5 × 90 (+2cm) × 48
Dimensions in Packaging  (H x W x D, cm):	56 × 98 × 36
Net weight (kg):	14.5
Gross weight (kg):	18
GTIN (barcode)	4032495810662
