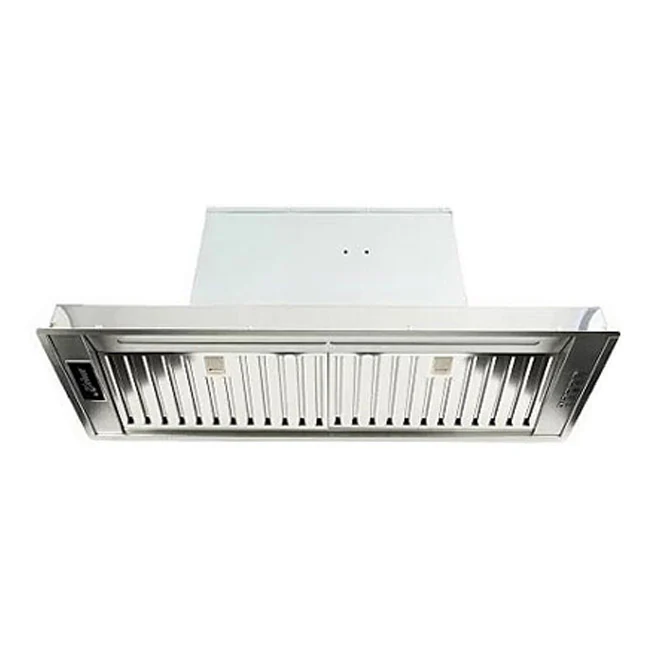

Avantgarde Pro 90cm Built In Cooker Hood (Stainless Steel)

• Built-in cooker hood
• Easy clean high-grade stainless steel
• Exhaust air extraction; for external fume extraction
• Powerful Extraction - Up to 1000 m3/h
• Powerful LED lamps
• 3-speed control (low, medium, high)
• Easy-to-operate controls
• Dimensions (cm): Hx 30.4, Wx 85, Dx 29

• Energy Efficiency Class

The Avantgarde Pro EA 945 Eco is a high-grade steel built-in cooker hood. This clean & clinical design is perfect for a modern kitchen to complement steel & silver appliances. Easy to wipe clean, and easy to operate with a simple touch button control for the LED lamps and 3-speed operation. This appliance requires extraction by the exhaust, so your kitchen layout must be suitable for using the exhaust air operation mode to remove fumes from your kitchen.

This built-in cooker hood is designed exclusively for installation within kitchen cabinets or other built-in kitchen units. It is not suitable for installation on chimney breasts or similar structures with no access from the top.



Full Description

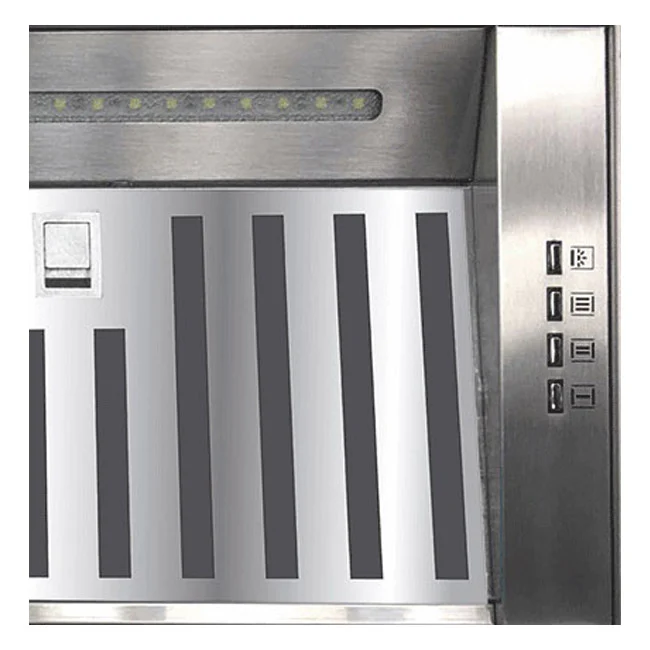

Electronic control system Logic Control

The cooker hood is easily controlled thanks to the modern Logic Control system.

Exhaust air extractor mode

The metal grease filter purifies cooking vapours and smells by absorbing the fatty constituents and other tiny particles in the kitchen fumes. The air exhaust pipes can be either connected to the exhaust air conduction or directed to the outside.

Odour absorber mode

It is not always possible to connect the fume extractor hood to the ventilation system. In this case, the extractor hoods by Kaiser can operate as a filtering system. The metal grease filter absorbs the fatty constituents and other tiny particles from the cooking vapours first, then the odorous substances and micro particles are directed through the activated charcoal filter. The cooking vapours and fumes return, purified, into the kitchen.

Aluminium corrugated pipe

Used in exhaust mode; a 150mm diameter aluminium pipe which is easy to use and to assemble. This pipe can be bent as needed and stretched along the required length. As a lightweight product this does not require additional fixing to secure. There is also an included adaptor to connect pipes with a 120mm conduit.

Metal grease filter

This long-life filter is made of stainless materials (stainless steel and aluminium). Grease filters should be cleaned every two months during normal operation of the hood in a dishwasher or manually, using mild detergent or liquid soap.

Charcoal filter

Our charcoal filters use chemically treated activated carbon, and have a high absorption capacity. The filer is capable of retaining particles of contaminating substances, the weight of which exceeds five times its own weight. The carbon filter removes various smells, smoke and steam impurities during cooking. The charcoal filters installed in our cooker hoods are for odour absorption/recirculation mode.

Specification

Finishing:	Stainless steel with
	Anti touch-effect / INOX
Operating modes:	Exhaust / Recirculation
Fan switch stages:	3
Grease filter material:	Metal
Max. fan power (m³/h)
Exhaust air operation	1000
Recirculating air operation	n/a
Noise Level (dbA)
Exhaust air operation	64
recirculating air operation	74
Number of lamps / power (W):	1 x 7
Light type:	LED
Total connected load (W)	0.082
Nominal voltage (V):	220 - 240
Frequency (Hz):	50

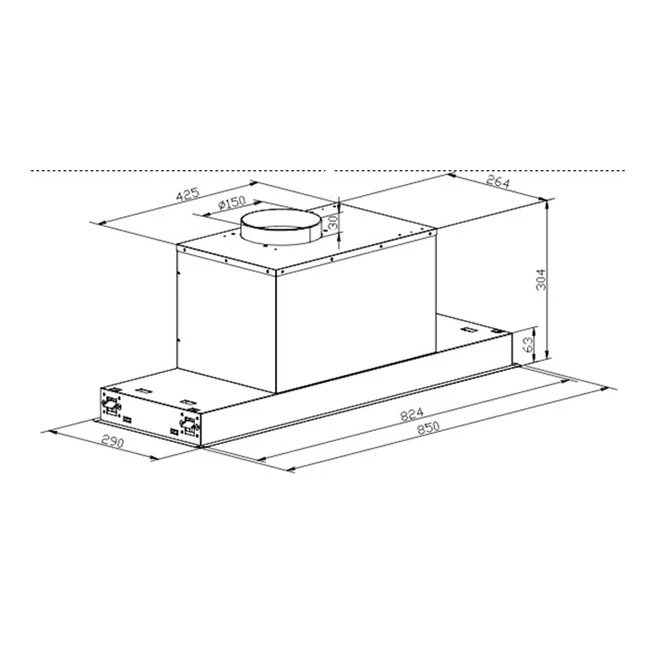

Dimensions H x W x D (cm):	30.4 x 85 x 29
Dimensions in packaging (cm):	35 x 90 x 38
(H x W x D, cm):
Net weight (kg):	10
Gross weight (kg):	11.5



This built-in cooker hood is designed exclusively for installation within kitchen cabinets or other built-in kitchen units. It is not suitable for installation on chimney breasts or similar structures with no access from the top.
