Avantgarde Pro 90cm Cooker Hood

• Large Wall-Mounted cooker hood
• Easy clean black bevelled glass
• Long lasting high-grade steel
• Air extractor mode; for external fume extraction
• Odour absorber mode; for internal filtering
• Powerful Extraction - Up to 1250 m3/h
• 2x Strong LED lamps
• 3 speed control (low, medium, high)

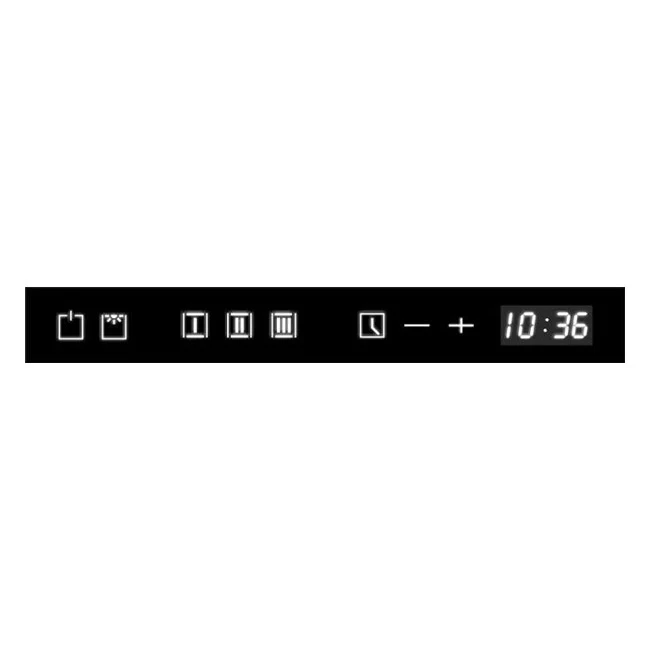

• Fully Touch operated
• Dimensions (cm): Hx 78.8cm, Wx 90cm, Dx 48cm
• Energy Efficiency Class A


The Avantgarde Pro AT 9430 F Eco is a modern & stylish, wall-mounted cooker hood. An excellent choice for a high-quality, modern, British kitchen requiring an extraction hood to remove fumes when cooking.

This 90cm cooker hood has black bevelled glass & high-grade steel finish. This makes it incredibly easy to wipe the surface clean, and the filters can be removed and placed in the dishwasher for cleaning & maintaining the performance of the appliance. With touch controls to operate the LED lamps & the 3-speed fan, this cooker hood really easy to operate.

Full Description

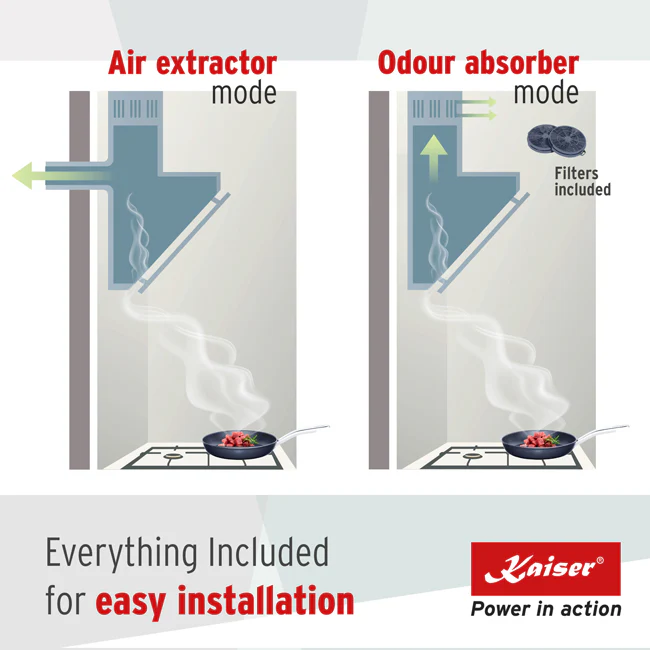

Exhaust air extractor mode

The metal grease filter purifies cooking vapours and smells by absorbing the fatty constituents and other tiny particles in the kitchen fumes. The air exhaust pipes can be either connected to the exhaust air conduction or directed to the outside.

Odour absorber mode

It is not always possible to connect the fume extractor hood to the ventilation system. In this case, the extractor hoods by Kaiser can operate as a filtering system. The metal grease filter absorbs the fatty constituents and other tiny particles from the cooking vapours first, then the odorous substances and micro particles are directed through the activated charcoal filter. The cooking vapours and fumes return, purified, into the kitchen.

Perimeter suction

This cooker hood provides permanent air supply through the slots on the entire perimeter of the hinged panel. Behind this panel charcoal and/or grease filters are hidden. Perimeter suction is possible due to the Venturi effect, named after the Italian physicist Giovanni Venturi, who discovered it.

Aluminium corrugated pipe

Used in exhaust mode; a 150mm diameter aluminium pipe which is easy to use and to assemble. This pipe can be bent as needed and stretched along the required length. As a lightweight product this does not require additional fixing to secure. There is also an included adaptor to connect pipes with a 120mm conduit.

Metal grease filter

This long-life filter is made of stainless materials (stainless steel and aluminium). Grease filters should be cleaned every two months during normal operation of the hood in a dishwasher or manually, using mild detergent or liquid soap.

Charcoal filter

Our charcoal filters use chemically treated activated carbon, and have a high absorption capacity. The filer is capable of retaining particles of contaminating substances, the weight of which exceeds five times its own weight. The carbon filter removes various smells, smoke and steam impurities during cooking. The charcoal filters installed in our cooker hoods are for odour absorption/recirculation mode.

Specification

Finishing:	Black bevelled glass, high-grade steel
Plug Type	Type C (Hardwire Recommended)
Telescopic duct (cm):	40 – 78
Operating modes:	Air extractor mode/odour absorber mode
Fan switch stages:	3
Grease filter material:	metal
Activated charcoal filter:	yes
Max. fan power (m³/h)
Exhaust air operation	1250
Recirculating air operation	1000
Noise Level (dbA)
Exhaust air operation	62
recirculating air operation	74
Number of lamps/power (W):	2 × 2,5
Light type:	LED
Total connected load (W)	385
Nominal voltage (V):	220 – 240
Frequency (Hz):	50

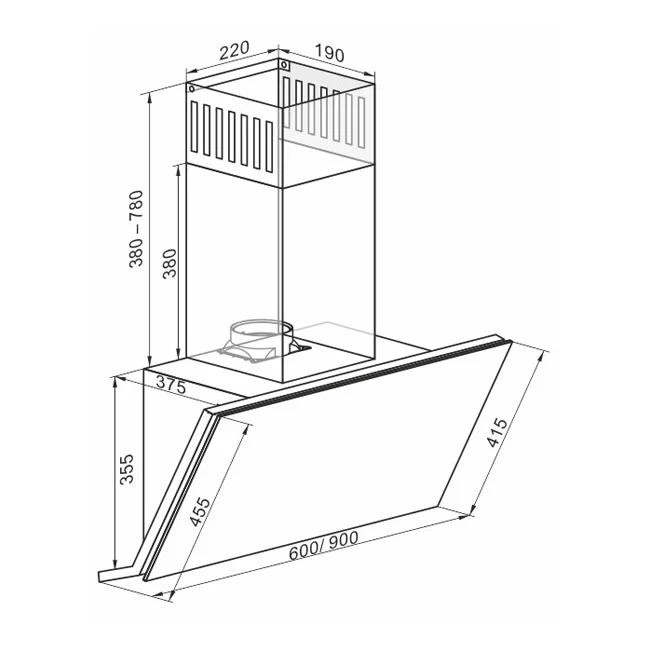

Product dimensions (H x W x D, cm):	78.8 × 90 (+2cm) × 48
Dimensions in packaging (H x W x D, cm):	57 × 95.5 × 46
Net weight (kg):	18.5
Gross weight (kg):	22
GTIN (barcode)	4032495041523
